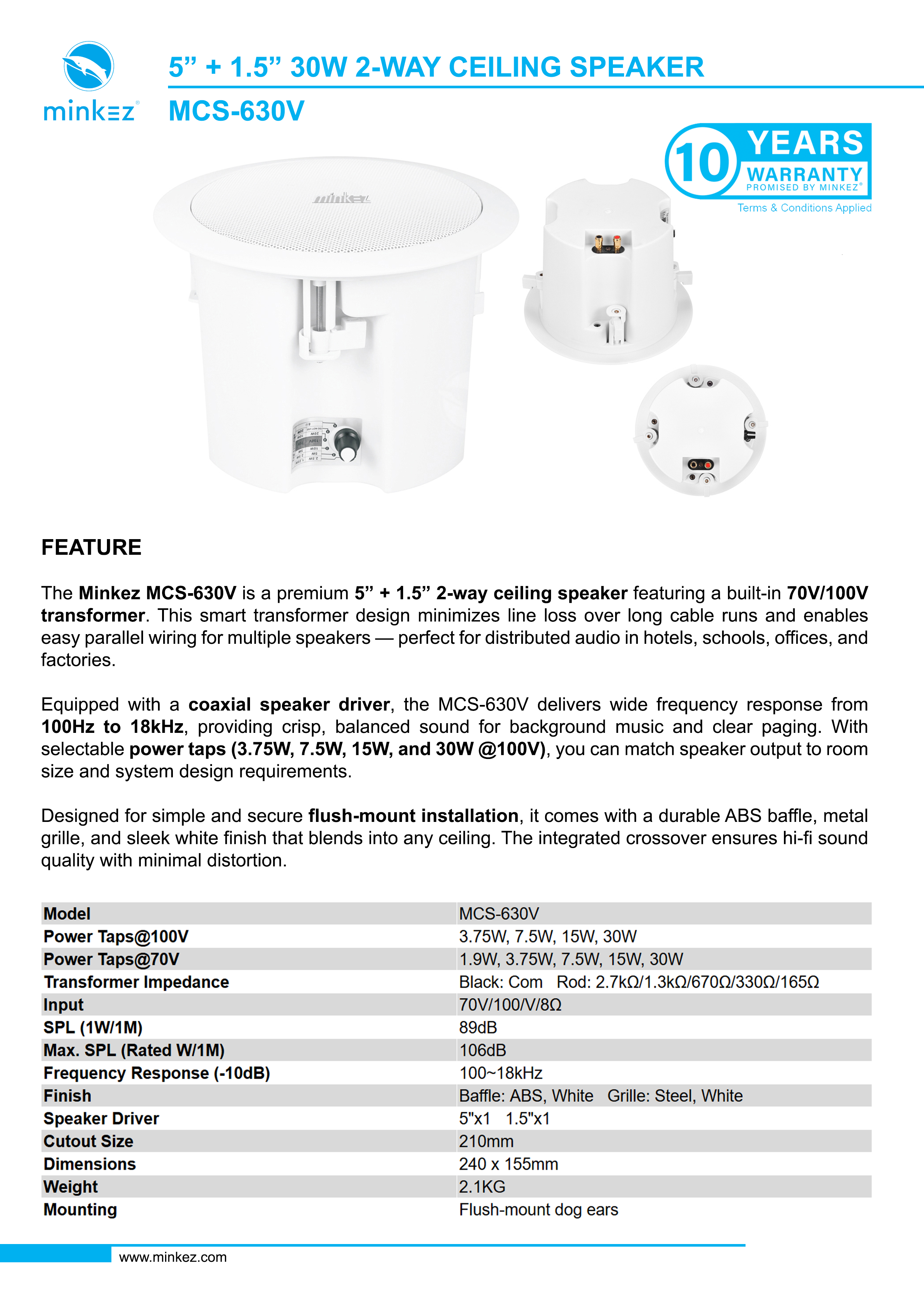

Minkez MCS-630V 5” + 1.5” 30W 2-Way Ceiling Speaker | 70V/100V Transformer | Flush Mount

High-Fidelity Coaxial Ceiling Speaker for Clear Background Music and Paging

The Minkez MCS-630V is a premium 5” + 1.5” 2-way ceiling speaker2-way ceiling speaker featuring a built-in 70V/100V transformer. This smart transformer design minimizes line loss over long cable runs and enables easy parallel wiring for multiple speakers — perfect for distributed audio in hotels, schools, offices, and factories.

Equipped with a coaxial speaker driver, the MCS-630V delivers wide frequency response from 100Hz to 18kHz, providing crisp, balanced sound for background music and clear paging. With selectable power taps (3.75W, 7.5W, 15W, and 30W @100V), you can match speaker output to room size and system design requirements.

Designed for simple and secure flush-mount installation, it comes with a durable ABS baffle, metal grille, and sleek white finish that blends into any ceiling. The integrated crossover ensures hi-fi sound quality with minimal distortion.

Key Features of Minkez MCS-630V

Built-In 70V/100V Transformer — Reduces line losses, supports parallel speaker connections
5” + 1.5” Coaxial Driver — Wideband audio response from 100–18kHz
Selectable Power Taps — 3.75W, 7.5W, 15W, 30W @100V; 1.9W–30W @70V
Hi/Low Impedance Input — Switchable between 70V/100V or 8Ω
Integrated Hi-Fi Crossover — For clear, natural sound reproduction
Commercial-Grade Build — ABS baffle, metal grille, back cover, and secure flush-mount installation
Cutout Size: 210mm | Dimensions: 240 × 155mm | Weight: 2.1kg
Ideal for: Hotels, schools, offices, factories, and all distributed PA/BGM systems
